ESPRESSO: Fabry-Perot wavelength-calibration frames
Counts and saturation check | Number of FP lines | Radial velocity drift


HC PLOTS
FP counts
FP lines
QC1 database (advanced users): browse | plot
QC1 database (advanced users): browse | plot
QC1 database (advanced users): browse | plot

Three different calibration sources can be used in order to wavelength calibrate ESPRESSO observations: a Fabry-Perot (FP) cavity, ThAr arc lamps, and a laser-frequency comb (LFC). The Fabry-Perot provides more than 60000 lines which are evenly distributed over the entire wavelength range of ESPRESSO. These give a very accurate relative calibration; the absolute wavelength scale has to be determined with ThAr exposures. The LFC on the other hand gives very accurate relative and absolute calibration. It covers, however, not the complete wavelength range of ESPRESSO.

A complete wavelength calibration sequence consists of:

  • an exposure with FP in fibre A and fibre B
  • an exposure with ThAr in fibre A and FP in fibre B
  • an exposure with FP in fibre A and ThAr in fibre B
  • an exposure with LFC in fibre A and FP in fibre B
  • an exposure with FP in fibre A and LFC in fibre B

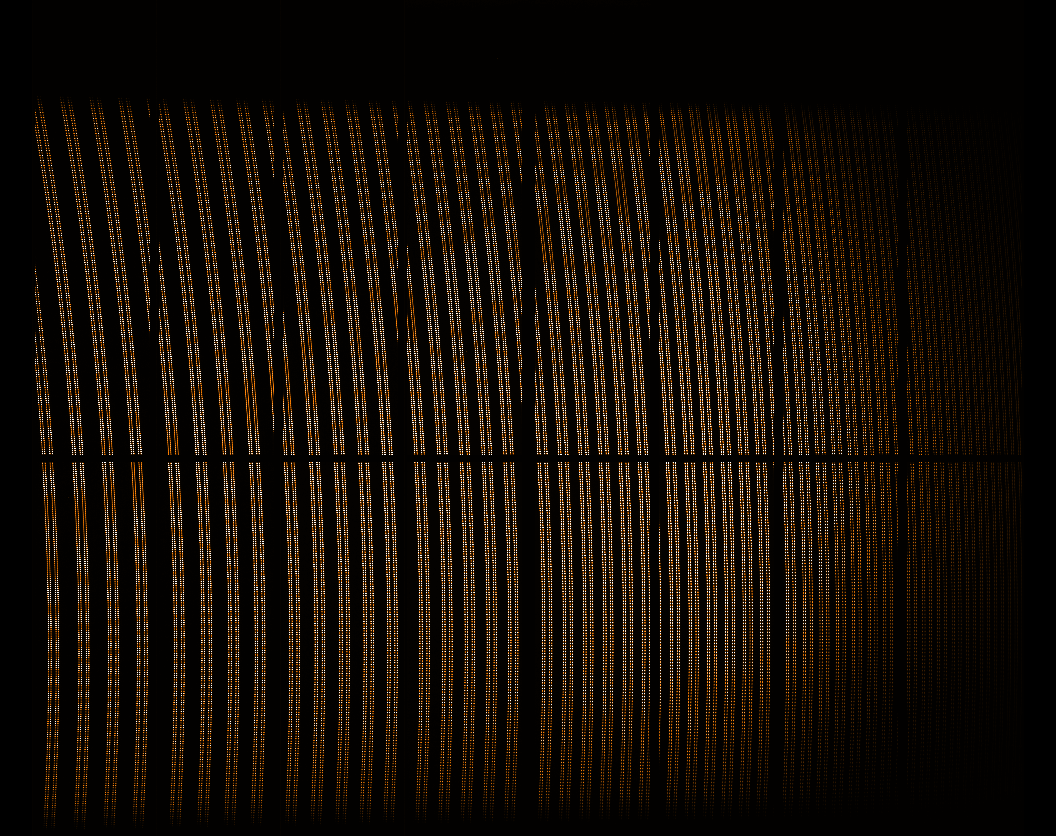

Wavelength calibration. Example raw frame for the blue detector with the FP in both fibres.


Counts and saturation check
Counts and saturation check | Number of FP lines | Radial velocity drift

QC1_parameters

FITS key QC1 database: table, name definition class* HC_plot** more docu
QC.EXT0.ROXm.ROYn.MAX.FLUX espresso_wave_fp..fiba_counts_max_blue maximum number of counts for fibre A on blue detector [e-]CAL [docuSys coming]
QC.EXT1.ROXm.ROYn.MAX.FLUX espresso_wave_fp..fiba_counts_max_red maximum number of counts for fibre A on red detector [e-] CAL [docuSys coming]
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one.

Trending

The maximum number of counts is trended separately for both detectors and for the five different combinations of resolving power and binning: HR with 1x1 and 2x1 binning, UHR with 1x1 binning, and MR with 4x2 and 8x4 binning.

Scoring&thresholds Counts and saturation check

The upper limit has been set to 55000 ADU, the lower limit is at 30000 ADU. The range is recommended by the consortium in order to ensure high quality wavelength calibration in all orders. It is also based on experience from pipeline reduction. The risk for failures in the reduction increases below the lower threshold.

History

Data taken before October 2018 have been processed with a pipeline version that converted ADUs into electrons (with about 1.1 e-/ADU).

Algorithm Counts and saturation check

Pipeline calculates values per read-out port. The QC script uses these values to determine the maximum for each of the chips.

Formally, pipeline values come per output file, one for fibre A and one for fibre B. In both cases, the reported number of counts refers to the same raw file. Therefore, the counts for fibre A and B are identical and only the QC parameter for fibre A is plotted.


Number of FP lines
Counts and saturation check | Number of FP lines | Radial velocity drift

The number of Fabry-Perot lines used for wavelength calibration after calibrating them with ThAr lines.

QC1_parameters

FITS key QC1 database: table, name definition class* HC_plot** more docu
QC.LINES.NB espresso_wave_thar_a..fiba_lines_tot total number of used lines for fibre A CAL [docuSys coming]
QC.LINES.NB espresso_wave_thar_b..fibb_lines_tot total number of used lines for fibre B CAL [docuSys coming]
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one.

Trending

The number of FP lines is trended separately for fibres A and B and for the five different combinations of resolving power and binning: HR with 1x1 and 2x1 binning, UHR with 1x1 binning, and MR with 4x2 and 8x4 binning. In addition to the total number of lines for the blue plus the red chip, the average number per order, and the RMS of the numbers of the individual orders are trended.

Scoring&thresholds Number of FP lines

Scoring and thresholds have been set for the total number of lines using data acquired during commissioning.

History

Date event
2019-03-25 With pipeline version espdr-1.2.0, orders are a bit shorter and number of FP lines decreased a bit; lower threshold for number of lines in HR and UHR changed to 61500 (instead of 62000)

Algorithm Number of FP lines

The pipeline calculates the number of FP lines for each order and the total number for all orders (blue+red chip) together.


Radial velocity drift
Counts and saturation check | Number of FP lines | Radial velocity drift

The Fabry-Perot wavelength calibrations can be used to determine the shift of the wavelength scale with respect to a reference. Dedicated sets of ThAr+FP and FP+ThAr exposures with 1x1 and 2x1 binning are measured each afternoon for this purpose. They are pipeline-processed using an FP+FP exposure from the morning calibrations as reference. The result is a shift in pixels, typically of the order of a few 1E-3 pixels.

The figure below shows results from a dedicated measurement consisting of 48 Thar+FP exposures taken from 2018-10-23T08:18 to 2018-10-23T13:34 (HR, 1x1 binning). They have been compared to a FP+FP calibration taken at 2018-10-23T05:02. The measurements in the blue arm show a scatter of about +/- 2.5E-03 pixels whereas in the red arm the scatter is smaller with about +/- 0.5E-03 pixels.

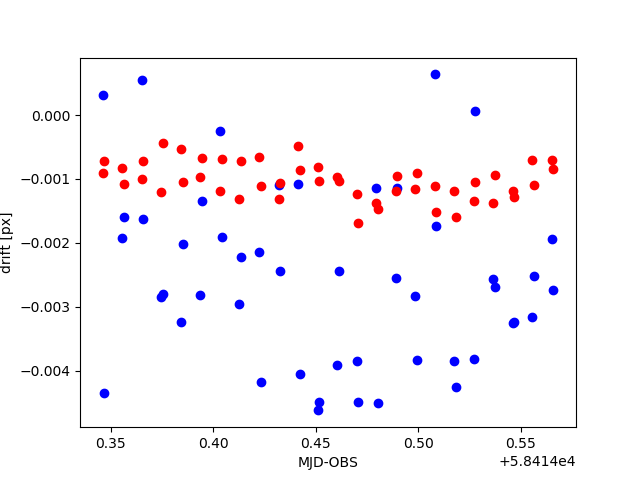

Wavelength drift. A dedicated measurement consisting of 48 ThAr+FP exposures taken over five hours on 2018-10-22. Blue points are from the blue spectroscopic arm, red points from the red arm.

QC1_parameters

FITS key QC1 database: table, name definition class* HC_plot** more docu
QC.DRIFT.DET0.MEAN espresso_wave_thar_a..fiba_drift_mean_blue shift of FP lines on blue chip with respect to reference [pixels] CAL [docuSys coming]
QC.DRIFT.DET1.MEAN espresso_wave_thar_a..fiba_drift_mean_red shift of FP lines on red chip with respect to reference [pixels]CAL [docuSys coming]
QC.DRIFT.DET0.MEAN espresso_wave_thar_b..fibb_drift_mean_blue shift of FP lines on blue chip with respect to reference [pixels] CAL [docuSys coming]
QC.DRIFT.DET1.MEAN espresso_wave_thar_b..fibb_drift_mean_red shift of FP lines on red chip with respect to reference [pixels]CAL [docuSys coming]
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one.

Trending

The pipeline results are converted into a radial velocity drift per hour, i.e. in cm/s/h. Both the original shift in pixels and the drift are plotted.

Scoring&thresholds Radial velocity drift

Scoring is not yet implemented.

History

No particular events.

Algorithm Radial velocity drift

The pipeline calculates the shift in pixels. These values are then converted into a radial velocity drift in cm/s/h: 0.002 pixels correspond to 1 m/s.
