CRIRES trending system: HISTORY plot
Last update: 2008-04-13T03:36:13 (UT)
same group: flat Hal_IR   ThAr
close window history: 2007   2008   2009   2010 2011 2012 2013 2014   HEALTH
  ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
[info]		 Symbol
[info]		 Source* Average [info] Thresholds [info] N_data Data downloads Remarks
method value unit method value
1 •QC1DB MEDIAN 575.23138 ADU/sec 3SIG± 534.40076 83 this | last_yr | all mean flux, chip 3, WREF=1090.4
2 •QC1DB MEDIAN 251.96480 ADU/sec 3SIG± 288.99762 79 this | last_yr | all mean flux, chip 3, WREF=3218.6
3 •QC1DB MEDIAN 375.14413 ADU/sec 3SIG± 483.61725 56 this | last_yr | all mean flux, chip 3, WREF=4092.9
4 •QC1DB MEDIAN 0.13744 ADU none   83 this | last_yr | all rms, chip 3, WREF=1090.4
5 •QC1DB MEDIAN 0.20611 ADU none   79 this | last_yr | all rms, chip 3, WREF=3218.6
6 •QC1DB MEDIAN 0.17320 ADU none   56 this | last_yr | all rms, chip 3, WREF=4092.9
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

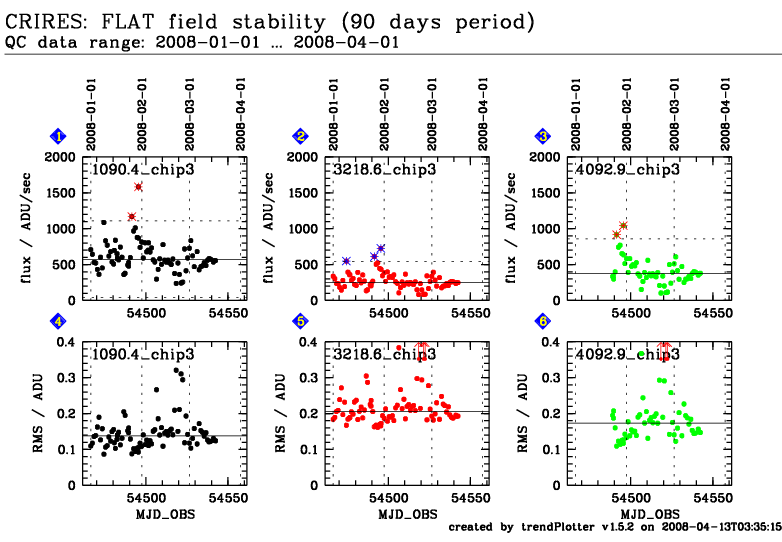

Trending plots monitoring the stability of flat fields.

Daily monitoring of flats is executed for three settings with reference wavelengths 1090.4, 3218.6, and 4092.9 nm. Only data for chip 3 are plotted here because the structure of the flats is unstable especially for chips 1 and 4.

The first row shows the mean flux level of the flats. A sudden decrease of the level below the typical variations could indicate a problem (e.g. with the halogen lamp). The second row has the rms measured over the illuminated area. A change would indicate a change in the overall structure of the flat.

As of March 2010, Paranal values are not plotted for rms because they deviate strongly from QC Garching values (because of different recipe parameters).

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
