CRIRES trending system: HISTORY plot
Last update: 2008-04-13T03:32:47 (UT)
same group: darkmed ron_raw
close window history: 2007   2008   2009   2010 2011 2012 2013 2014   HEALTH FULL
  ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
[info]		 Symbol
[info]		 Source* Average [info] Thresholds [info] N_data Data downloads Remarks
method value unit method value
1 •QC1DB MEDIAN 3.42272 ADU 3SIG± 0.10715 85 this | last_yr | all RON, chip 1, DIT=1
2 •QC1DB MEDIAN 3.50571 ADU 3SIG± 0.87353 85 this | last_yr | all RON, chip 2, DIT=1
3 •QC1DB MEDIAN 3.65230 ADU 3SIG± 0.08914 85 this | last_yr | all RON, chip 3, DIT=1
4 •QC1DB MEDIAN 4.06910 ADU 3SIG± 0.40905 85 this | last_yr | all RON, chip 4, DIT=1
5 •QC1DB MEDIAN 1.65935 ADU 3SIG± 0.23232 99 this | last_yr | all RON, chip 1, DIT=300
6 •QC1DB MEDIAN 1.94257 ADU 3SIG± 0.11530 99 this | last_yr | all RON, chip 2, DIT=300
7 •QC1DB MEDIAN 2.11541 ADU 3SIG± 0.17706 99 this | last_yr | all RON, chip 3, DIT=300
8 •QC1DB MEDIAN 2.10695 ADU 3SIG± 0.61400 99 this | last_yr | all RON, chip 4, DIT=300
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

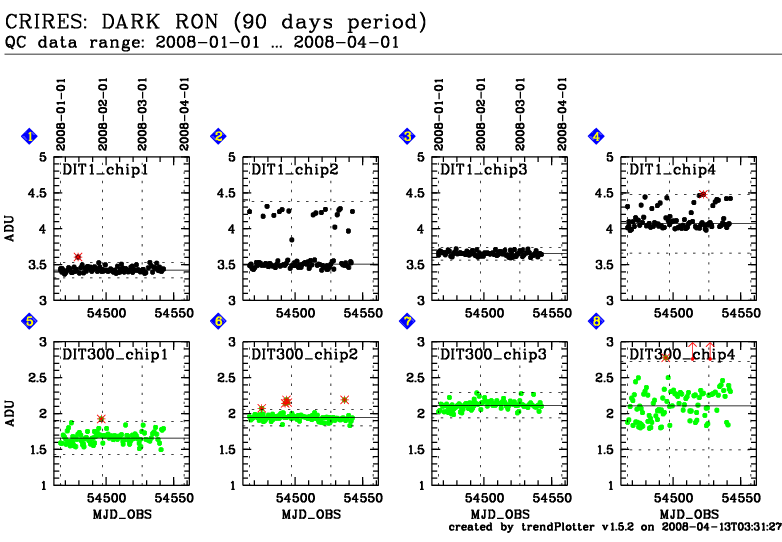

Trending plot for CRIRES RON as determined from DARK exposures.

The read-out noise is measured from the difference of the 3rd and 2nd dark image using the following procedure:
- generate 100 13x13 pixel windows
- compute the pixel standard deviation in each window
- the read-out noise is the median of these measurements multiplied with sqrt(NDIT/2).

The trending shows RON from DIT=1sec and DIT=300sec exposures for all four chips.

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
