*Data sources: QC1DB: QC1 database; LOCAL: local text file
|

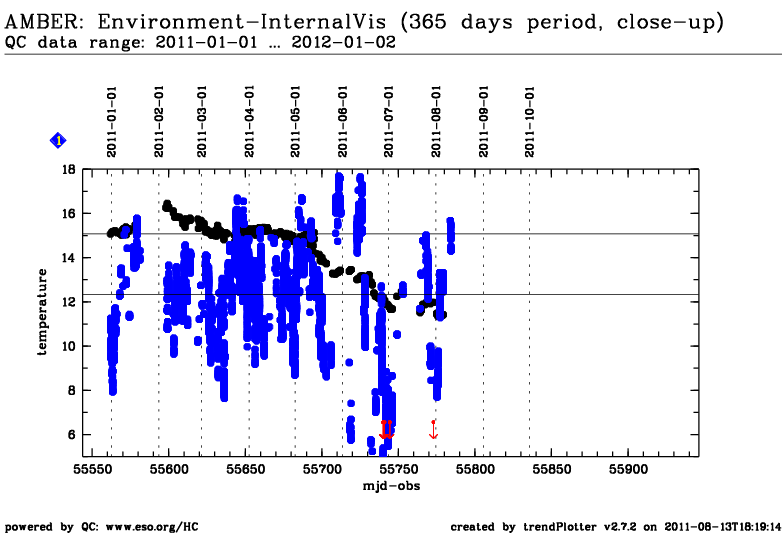

Plot 1 | data source: | local text file
|
parameter | dataset: (numbers applicable to ) | temp_lab | |
median: | 15.07 | NONE |
thresholds: | none | |
N_data: | 331 |
[click on plot for closeup] |

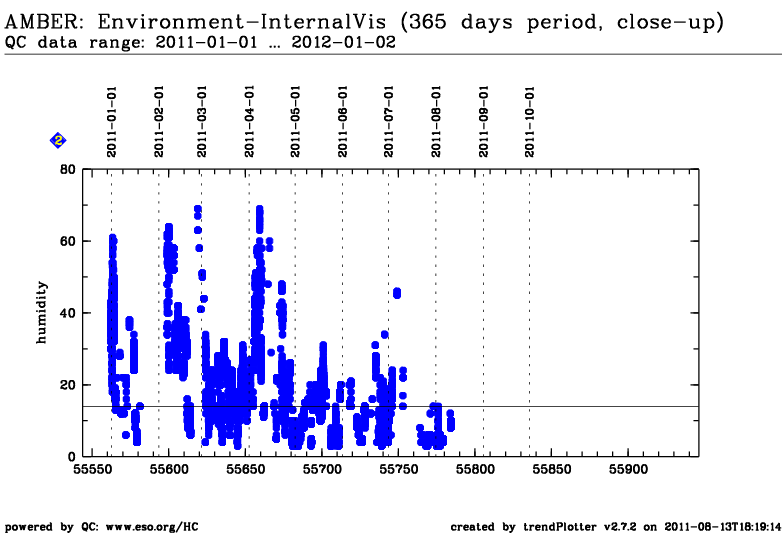

Plot 2 | data source: | local text file
|
parameter | dataset: | temp_dimm | |
median: | 14.0 | NONE |
thresholds: | none | |
N_data: | 11212 |
[click on plot for closeup] |
Plot 3 | data source: | local text file
|
parameter | dataset: | bas12 | |
average: | none |
thresholds: | none |
N_data: | 331 |
[click on plot for closeup] |
Plot 4 | data source: | local text file
|
parameter | dataset: | bas23 | |
average: | none |
thresholds: | none |
N_data: | 331 |
[click on plot for closeup] |

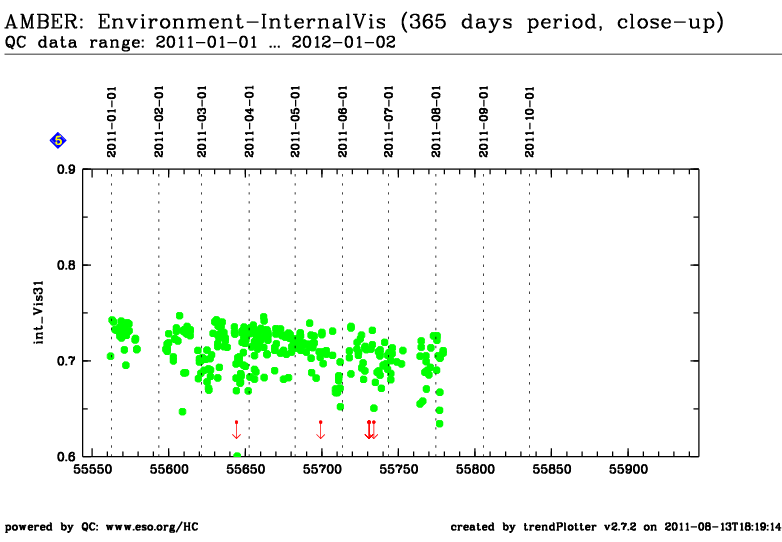

Plot 5 | data source: | local text file
|
parameter | dataset: | bas31 | |
average: | none |
thresholds: | none |
N_data: | 331 |
[click on plot for closeup] |
This plot
The P2VM (Pixel to Visibility Matrix) is used to calibrate the science data. The pipeline product provides also some QC parameters which are used to monitor the Instrumental transfer function and the offset between the photometric beams.
In Low resolution JHK, the Instrumental Visibility is calculated across the full JHK spectrum (this plot) or in the individual bands (J, H and K). The band K,H,J Instrumental Visibilities are shown in the HC plots: K_P2VM_LJHK, H_P2VM_LJHK, J_P2VM_LJH.
The HC plot "with_temp" is a long range plot where the temperature inside the
lab is also plotted. This could show some correlation etween internal
Visibility and temperature (see also environment HC plots under Non Daily)
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
